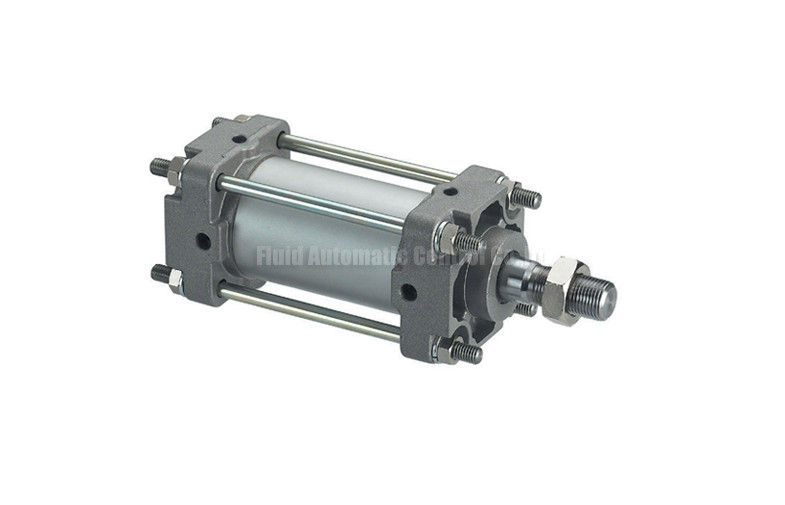

CA1 Double Acting Pneumatic Air Cylinder 40mm - 100mm , Tie Rod Gas Cylinder

Place of Origin : Ningbo China(Mainland)

Brand Name : FLUIDAC or OEM

Certification : ISO9001

Model Number : CA1BN-40-100

MOQ : 5 piece

Price : USD10--

Packaging Details : Boxes, Cartons,Wooden cases,Pallets

Delivery Time : Within 20 days after receiving payment or deposit

Payment Terms : TT Advance/30% deposit,70% by copy Bill oflading,Western Union,Paypal

Supply Ability : 5000 Pieces Per month

Bore size : 40mm,50mm,63mm,80mm,100mm

Motion Pattern : tie rod type,Double action

Operating pressure range : 0.05~1.0MPa

Pressure Endurance : 1.5MPa

Product name : Pneumatic Air Cylinder

Working Medium : Filtered compressed air

Contact Now



CA1 Double Acting Pneumatic Air Cylinder 40mm - 100mm , Tie Rod Gas Cylinder

SMC standard tie rod type CA1 double acting Pneumatic air cylinder Bore size 40mm-100mm e.g. CA1BN-40-100 with magnet and Air buffer





Quick Detail:



* SMC interchange standard CA1 pneumatic air cylinder

* With Tie-rod stable design for heavy duty application

* Hard anodized barrel,high impact resistance

* Piston rod #45(ASTM-1045) steel chrome-plated

* Long service life,high efficiency

* Bore size(mm) 40,50,63,80,100

* Cylinder kits,repair kits and accessories available

CA1 Double Acting Pneumatic Air Cylinder 40mm - 100mm , Tie Rod Gas Cylinder

Specifications:



CA1

20

50

CA1BN:Standard type without magnet

Bore Size

Stroke

40:40mm

50:50mm

CDA1BN:With Magnet

63:63mm

80:80mm

100:100mm





SPECIFICATION

Bore size(mm)

40

50

63

80

100

working Medium

Filtered compressed air

Motion Pattern

Double action

Pressure Endurance

 1.5MPa

Operating pressure range

0.05~1.0MPa

Ambient  Temperature

 5~60ºC

Buffer cushioning

Air buffer

Operating  Speed

50~500mm/s

 Port size

G1/4

G3/8

G3/8

G1/2

G1/2



CA1 Double Acting Pneumatic Air Cylinder 40mm - 100mm , Tie Rod Gas Cylinder

Bore size

Stroke range

Thread length available

A

□B

□C

φD

φE

F

GA

GB

J

K

M

MM

N

P

S

W

H

ZZ

40

~500

27

30

60

44

16

32

10

15

15

M8×1.25

6

11

M14×1.5

27

 1/4

84

8

51

146

50

~600

32

35

70

52

20

40

10

17

17

M8×1.25

7

11

M18×1.5

30

 3/8

90

0

58

159

63

~600

32

35

85

64

20

40

10

17

17

M10×1.25

7

14

M18×1.5

31

 3/8

98

0

58

170

80

~750

37

40

102

78

25

52

14

21

21

M12×1.75

11

17

M22×1.5

37

 1/2

116

0

71

204

100

~750

37

40

116

92

30

52

14

21

21

M12×1.75

11

17

M26×1.5

40

 1/2

126

0

72

215
